Xtreme Patrol 27

ACX Extreme Patrol 27 High Performance Center Console: Based on a proven offshore racing hull design, the Xtreme Patrol 27 has a 25 degree dead rise at the stern for a smooth ride and incredible performance. Used By Law Enforcement and Military Worldwide the Extreme Patrol 27 High Performance Center Console model is certain to last and the performance is second to none in its class.

For more information, please contact us.

Specifications

  • Length: 27 ft | 8.5m
  • Width: 8.5 ft | 2.59m
  • Depth: 4.16 ft | 1.27m
  • Draft: 1.64 ft | 0.5m
  • Seating Capacity: 12 People
  • Carrying Capacity: 1835 kg

Fiberglass Hull Thickness

  • Keel: 12mm
  • Bottom of chine: 09mm
  • Chine of Side Shell: 07mm
  • Side Shell: 08mm
  • Deck & Super Structure: 06mm

Upgrade Options

  • Forward Driving Station
  • Canvas Bimini Top
  • Pilot House Enclosure
  • T tops
  • Extended Hard Top
  • Special Seating Available

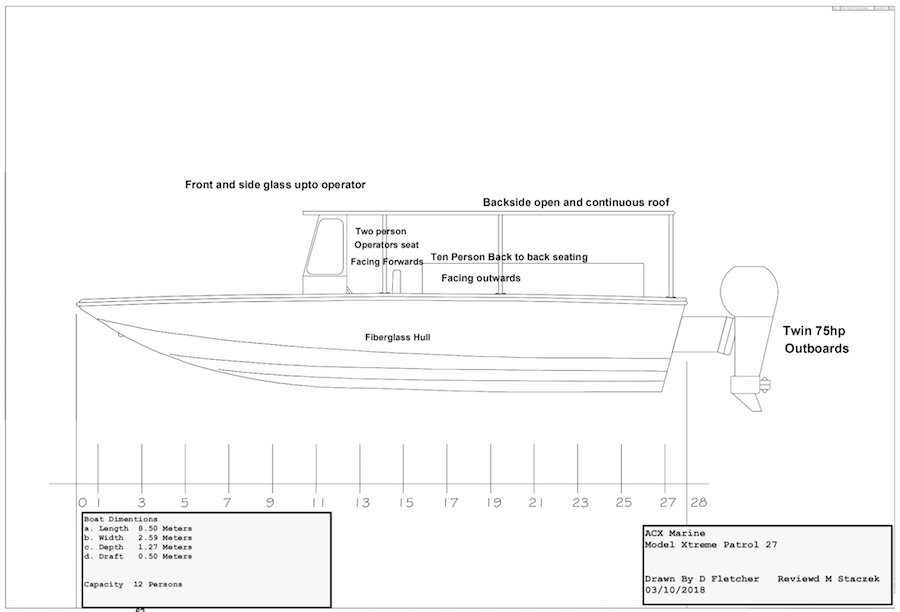

(click for larger view)

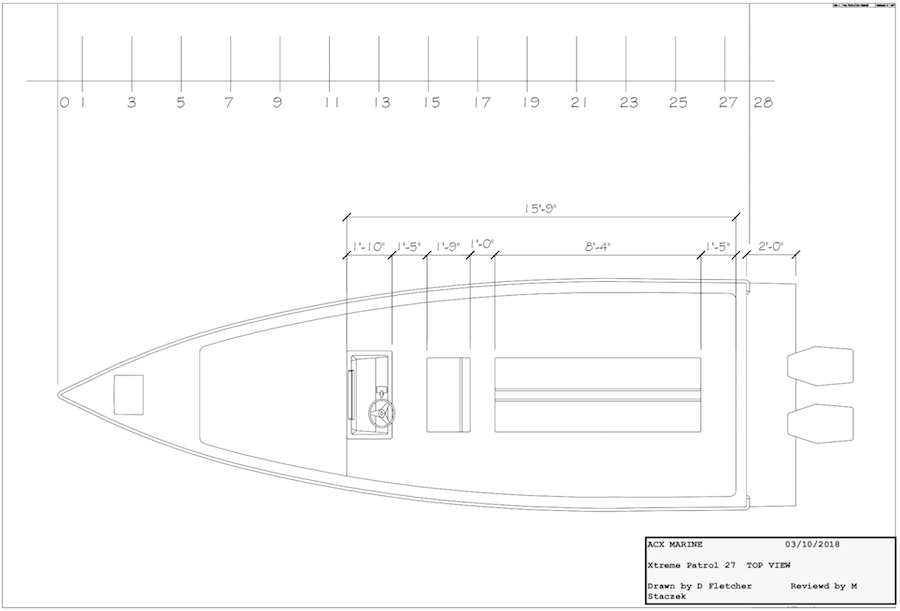

(click for larger view)
